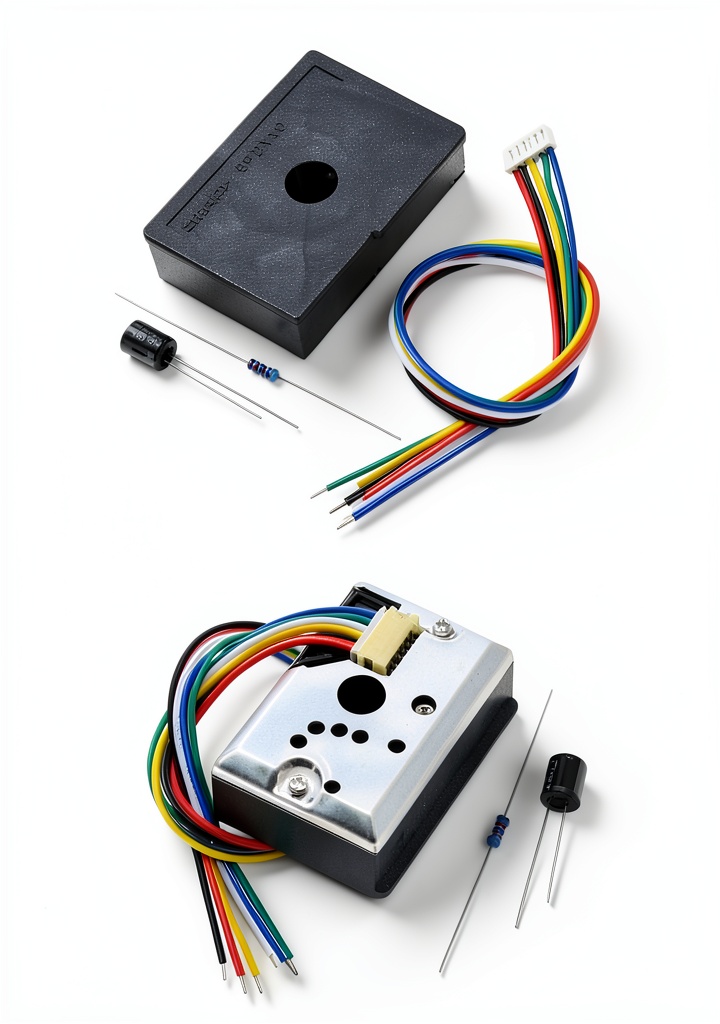

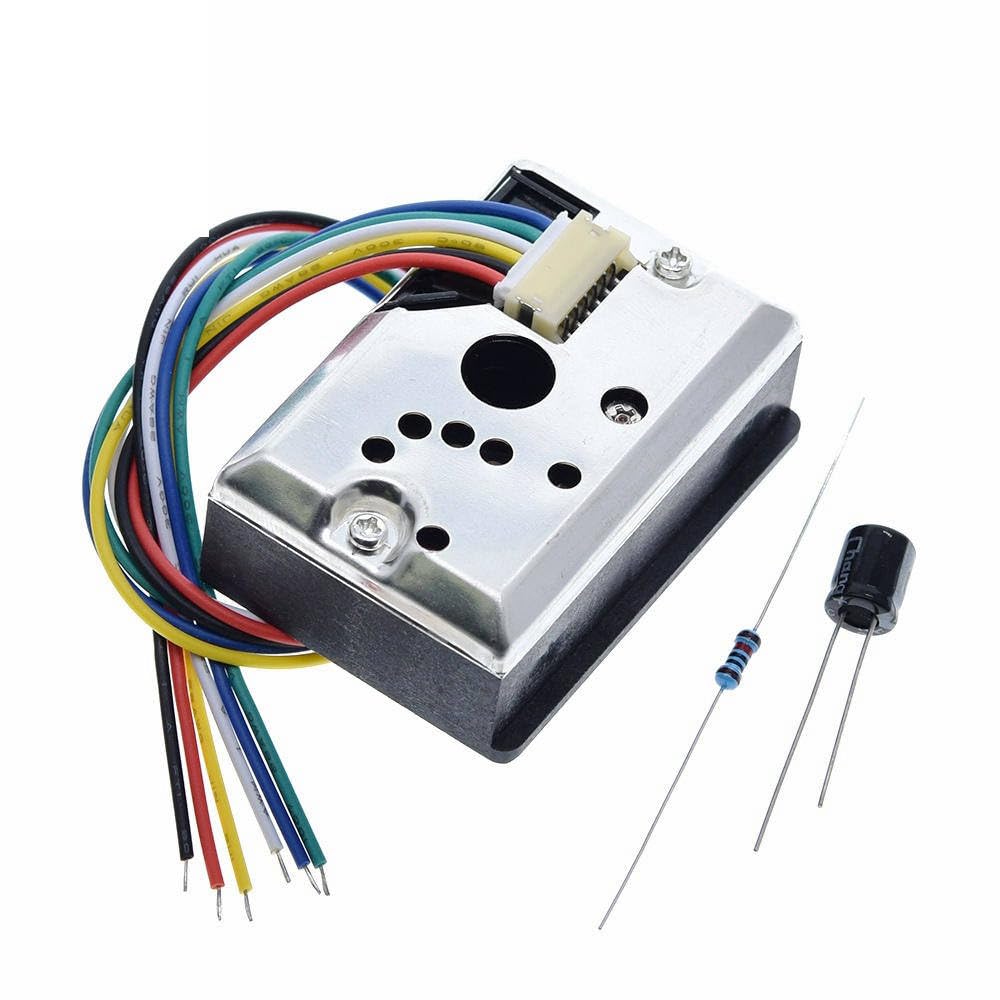

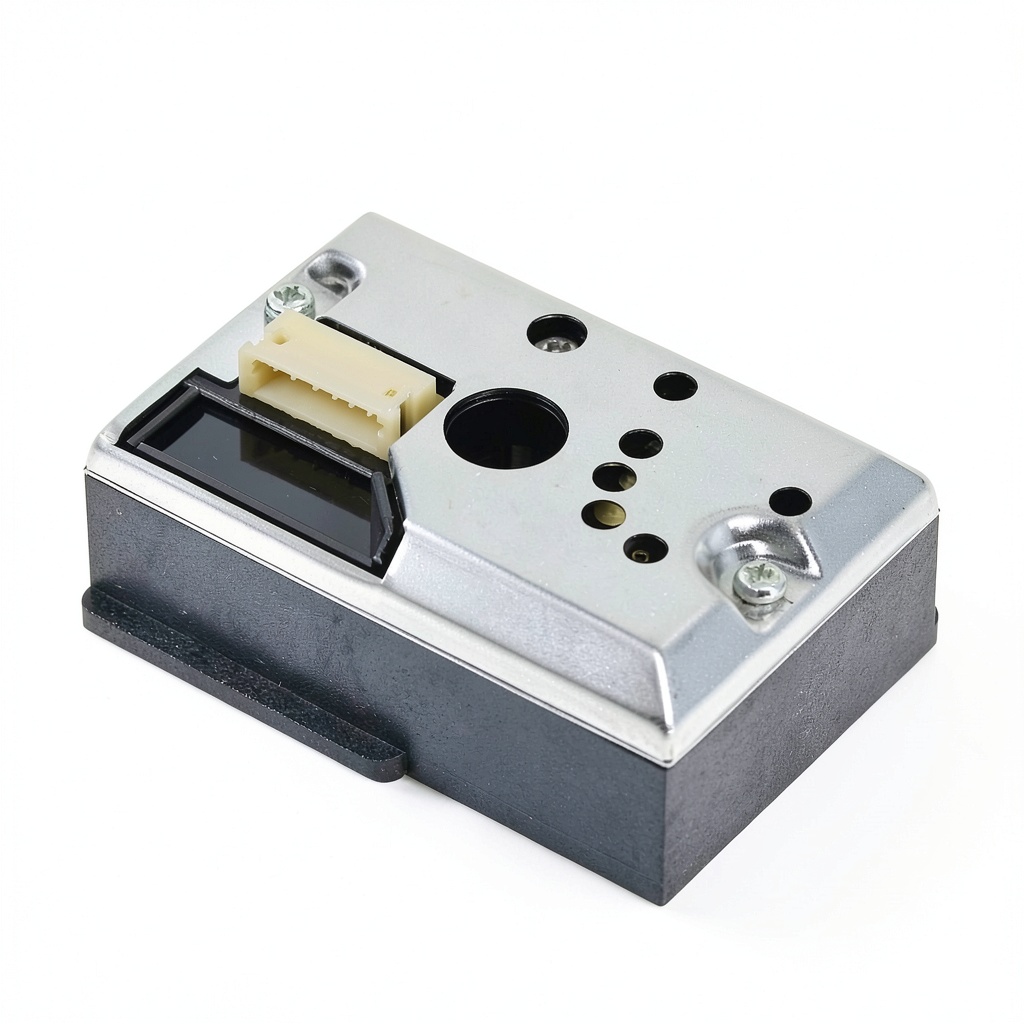

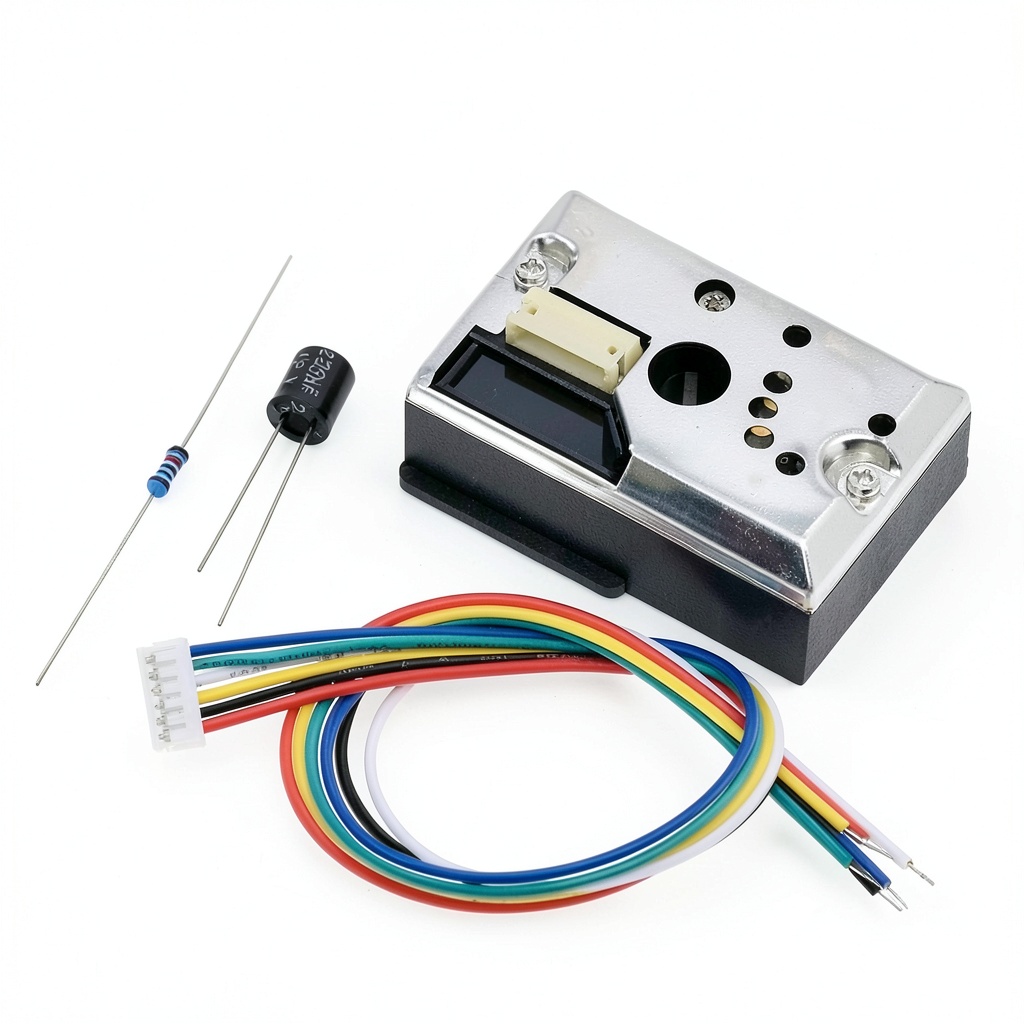

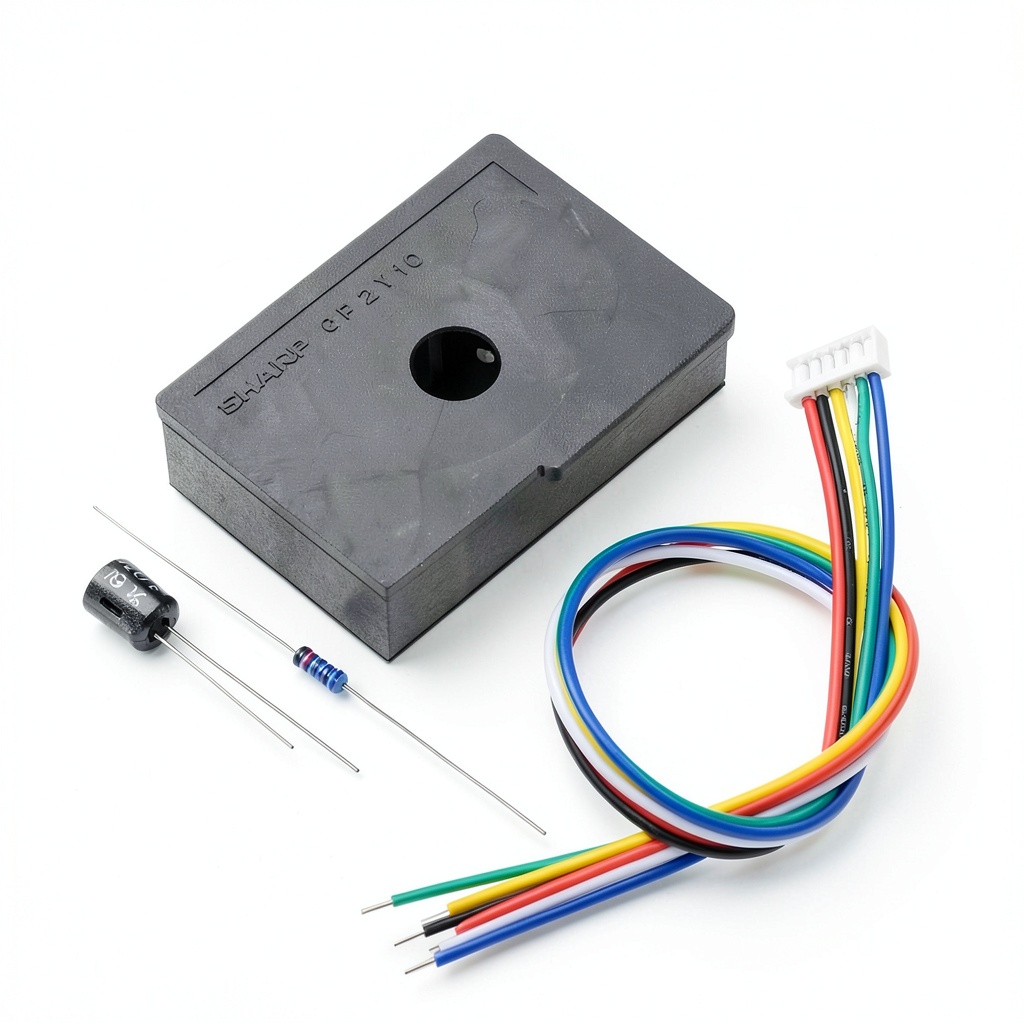

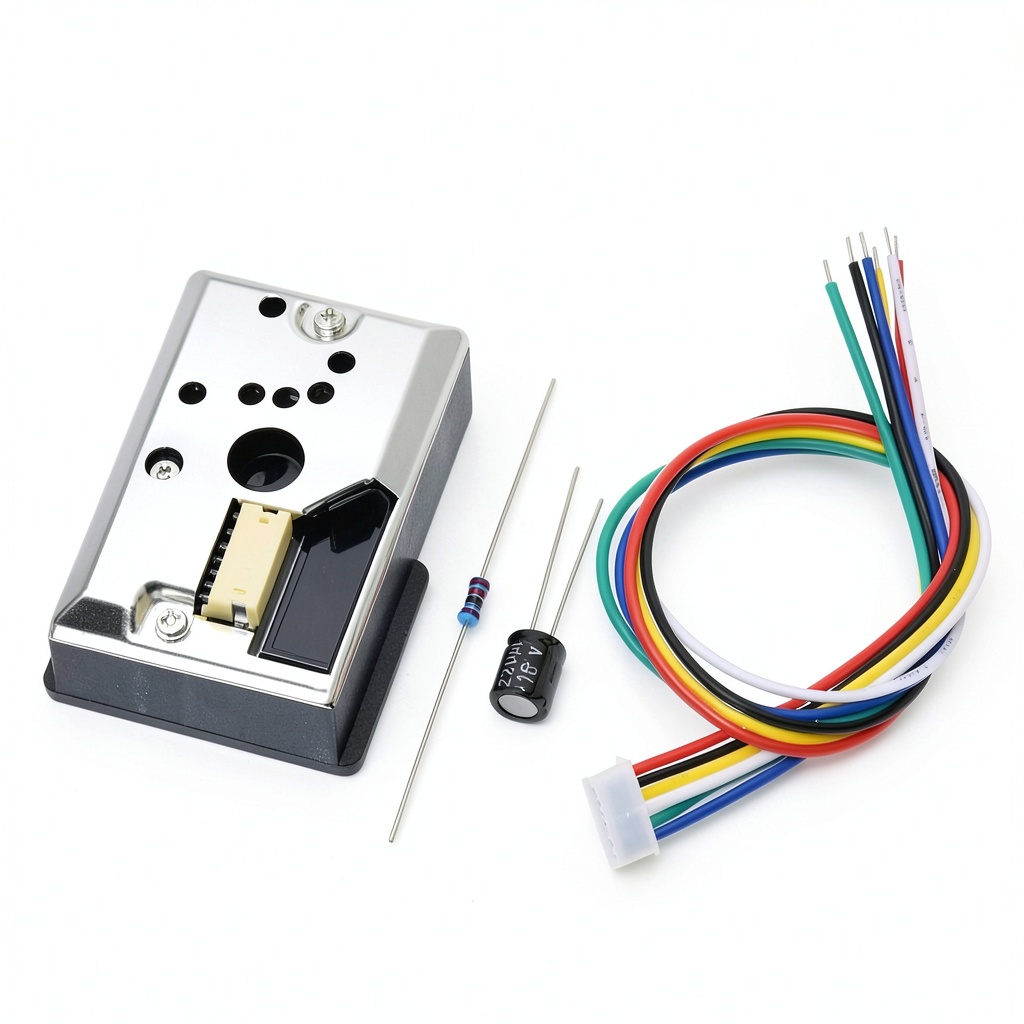

GP2Y1014AU0F Generic Compact Optical Dust Sensor with Cable

Description

Product Overview

The GP2Y1014AU0F optical dust sensor from Generic is engineered for precise detection of smoke particles and airborne dust in a remarkably compact package. Measuring just a few centimeters in length, the sensor integrates an infrared LED and a photodiode that work together to sense light scattering caused by dust particles suspended in the air. This optical principle enables real‑time monitoring of particulate concentration with high sensitivity and low power consumption, making it suitable for battery‑operated devices and continuous‑run applications alike. The included cable eliminates the need for additional wiring, simplifying the connection to microcontroller platforms such as Arduino, Raspberry Pi, ESP32, and other development boards. The sensor operates on a 5 V supply and outputs an analog voltage proportional to the dust density, allowing developers to easily convert the signal into meaningful air‑quality metrics using standard ADC channels. Its robust plastic housing protects the internal optics from dust ingress while maintaining a lightweight form factor that can be mounted on PCBs, enclosures, or prototype boards without requiring special mounting hardware.

Usage

Designed for versatility, the GP2Y1014AU0F finds application across a wide range of environments where air‑quality monitoring is critical. In smart home projects, the sensor can be paired with Wi‑Fi or Bluetooth modules to provide real‑time alerts when smoke or high dust levels are detected, enabling automated ventilation or fire‑safety responses. Industrial settings benefit from its ability to monitor particulate matter in HVAC ducts, clean rooms, and manufacturing floors, helping maintain compliance with occupational health standards. Hobbyists and educators use the sensor in classroom experiments to demonstrate the principles of optical scattering, data acquisition, and environmental sensing, while researchers integrate it into low‑cost air‑quality stations for community‑driven pollution mapping. The built‑in cable simplifies installation in cramped spaces, and the analog output can be calibrated against reference instruments to achieve quantitative measurements that support data logging, trend analysis, and predictive maintenance workflows.

Why Choose Us

Choosing the Generic GP2Y1014AU0F sensor means selecting a component that balances performance, affordability, and ease of integration. The sensor is manufactured to strict quality standards, ensuring consistent optical alignment and reliable LED output across production batches. Unlike many low‑cost alternatives that omit essential accessories, this unit ships with a pre‑terminated cable, reducing assembly time and minimizing the risk of wiring errors. Generic’s extensive support resources—including detailed datasheets, wiring diagrams, and example code for popular development platforms—empower users to get up and running quickly. Additionally, the company offers a responsive technical support team that can assist with calibration procedures, troubleshooting, and firmware integration, providing peace of mind for both novice makers and seasoned engineers. With a competitive price point of $9.30, the sensor delivers exceptional value without compromising on accuracy or durability, making it an ideal choice for budget‑conscious projects that still demand high‑quality data.

Key Features

• Compact size fits tight spaces and simplifies system design
• Built‑in cable eliminates extra wiring and speeds up prototyping
• High‑sensitivity infrared LED and photodiode provide accurate dust readings
• Low power consumption suitable for battery‑operated and continuous‑run devices
• Responsive technical support and comprehensive documentation for hassle‑free integration

FAQ

What voltage does the sensor require?

The GP2Y1014AU0F operates on a 5 V DC supply, which is compatible with most Arduino, Raspberry Pi, and ESP32 boards.

Can the sensor detect specific types of particles?

The sensor measures overall particulate concentration based on light scattering; it does not differentiate between particle types but reliably indicates the presence of smoke, dust, and other airborne contaminants.

How do I calibrate the sensor for accurate measurements?

Calibration involves comparing the sensor’s analog output to a reference air‑quality instrument under known conditions, then applying a scaling factor in your code to convert voltage readings into standard units such as µg/m³.

Is the sensor suitable for outdoor use?

While the sensor is housed in a protective plastic enclosure, it is best used in indoor or semi‑protected environments. For outdoor deployments, additional weatherproofing is recommended.

What support is available if I encounter issues?

Generic provides email and forum‑based technical support, along with downloadable resources like wiring schematics, example sketches, and troubleshooting guides to help resolve most common issues quickly.
